Highlights of this lab:

In this lab,  you will:

• Absorb the concepts involved in Data Abstraction.
• Clarify the definitions and format of an ADT.
• Master the implementation details required to code ADT's in a modular fashion.
  • Implementing Member Functions
  • Constructors - a special case

Reference: See the programming example on "Classes" in the C++ Syntax pages.

Lab Exercise:

• Add operations to an ADT

Data Abstraction.

• the data types you need to use, and
• what operations you need to have performed.

These two things constitute an Abstract Data Type, or an ADT.

The operations for an ADT fall into 4 categories:

The following is an example of a set of specifications for an ADT. This includes a description of the data and the operations on these values.

Type
	Grades
Data or Fields
        name    -    a character array of 20 elements (represents student name)
        id      -    an integer  (represents student #)
        marks   -    an array of integers (for storing marks)
Operations
	setName	-    a transformer type operation
	setID   -    a transformer type operation
	setMarks-    a transformer type operation
	reporter-    an observer type operation

Theory and abstraction are fine, but sometimes it's helpful to relate this to some practical knowledge in order to put the concepts into place. With that in mind, we'll introduce the term classes here, which is the most common way in which ADT's are implemented in C++. Here is a comparison between classes, which you may not have read much about yet, and structures, which you explored in a previous lab.

• By default, class members are private, whereas structure members are public
• In traditional C, structures did not contain operations.
• Nowadays, structures can have operations, but this approach is not recommended; making all data and operations public does not follow good object oriented design.
• Code that follows good object oriented design typically has data that is private and uses "setters" and "getters" to respectively modify and return the values of the data.

Declaring and using classes is similar to declaring and using structures in C++. First you declare the class (or structure), and then you declare the instances of the class (or structure).

For example, here are comparitive examples of how you declare and instantiate a class and a structure.

There, now you've got the formal definition of an ADT and had a look at how they are implemented in C++ as classes. In the next section, you'll examine class members in more detail.

Definitions for Implementing an ADT with a Class.

Class members are either public, meaning that they are accessible from outside the class, or private (the default), meaning that only the class can access them. Generally data is designated as being private (look up "information hiding" in any text) and the methods are designated as being public, so that they can be called from elsewhere.

Here's a simple example:

class Computer
{
  private:
	// It's not necessary to include this term since that is the default.
	// However, it's good form to do so and clarifies your meaning.
    int processorSpeed;
  public:
    void setSpeed(int);
    int getSpeed() const;
};

Note: It doesn't matter if private comes before public, or the other way around.

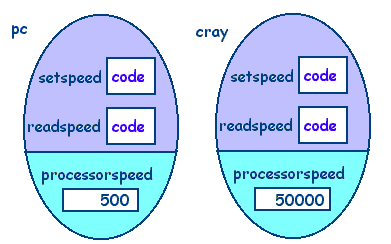

Let's try to visualize what two instances of this Computer class would look like. Say you've instantiated a Computer called pc and another called cray. Each of them would exist as an object and have its own methods and data.

You would use dot notation to refer to the members of each instance. e.g. pc.setSpeed(x); or cray.setSpeed(x); Be careful though - if you tried to access the data member, pc.processorSpeed from outside the class you would get an error, because that was declared as being private, unlike the methods, which are public.

Implementation Details.

Member Functions

When you enter the code for the function in the Filename.cpp file, you must precede each member function name with the name of the class.

e.g.
	void Computer::setSpeed(int p)

Going back to the example we were just looking at, you could have three files involved in the total program.

You may recall from a previous lab that each .cpp file must be compiled to an object, .o, file individually and then linked together to produce the executable file. Click here to see the picture that summarizes the separate compilation.

Constructors - a special case

When we talked about ADT's one of the classes of operation we identified was Constructor. Constructors initialize data that wasn't there before.

An ADT can have two different general types of constructor. The first constructs the ADT itself. The second constructs pieces of the ADT if the ADT contains other ADTs, as in a list of addresses.

The first type of constructor generally has special language support. In C++ there are a few variations that allow for all, some or no data to be specified at object creation time. Any further changes would be made using transformers or the other type of constructor. The details of how to implement the first type of constructor follow in the next subsection.

The second type of constructor works just like any other member function, but at some point it may call a constructor for the contained data type.

C++ Constructors

• Constructors are used to initialize data members for a class object.

• A constructor is automatically invoked when a class object is created.

• If there is no constructor, then the data members for the new class object are not initialized and can contain garbage values. It is best to use a constructor to initialize the values.

• The name of the constructor function is the same as the name of the class. For example, if your class name was Grades then that would also be the name of your constructor function.

• A class can have more than one constructor, but each constructor would take a different number of parameters.

• A constructor without any parameters is called a default constructor.

• You do not indicate the data type of a constructor function because the function cannot return any value.
  WRONG:       int class_name::constructor_name(parameter-list)
  CORRECT:    class_name::constructor_name(parameter-list)
  For example this is what a default constructor for that Grades class would look like:

  	Grades::Grades()
  	{
  	    //  include C++ statements here to initialize the data members
  	}


• You can have several constructors with the same name, as long as they have a different number of parameters or different types of parameters. Thus, you could have a constructor with no parameters, with one parameter, with two parameters, etc. For example, two constructors that take one integer parameter and three integer parameters would look like:

  	Grades::Grades(int a)
  	{
  	    //  include C++ statements here to initialize the data members
  	}
  	Grades::Grades(int a, int b, int c)
  	{
  	    //  include C++ statements here to initialize the data members
  	}


• To invoke a constructor, just create an object, giving the parameters for the constructor after the new object name. The constructor with the appropriate number of parameters will be executed.
  For example if there was a class called Grades, here are some statements to create new Grades objects, using constructors which each take different parameter lists:

  	Grades student1;	// create an object using the default constructor
  	Grades student2(123);	// create an object passing a single parameter
  	Grades student3(85, 75, 99);	// create an object passing three parameters


  Note that you would have had to create each of the constructor functions in the class file.

Copy Constructors

Copying an object using the default copy constructor may work for simple objects. However, if there were pointers in the original object, only the pointers would be duplicated, not the data that was being pointed to. Following the previous example, suppose Tree objects had an integer data member, and a pointer data member to a character string. pine1's pointer would have the address of the same data as pine2's pointer! There would then be two ways of accessing (and modifying!) the same data. This type of a copy operation is called a shallow copy because the "pointed-to" data is not copied when a 'clone' is made. This is not a true clone.

If pointers are part of an object, what you may need is a deep copy which you would have to define yourself. Here is the general syntax for a deep copy constructor.

type :: type (const type  & object_name)

Tree::Tree(const Tree & otherTree)
    {
    age = otherTree.age;
    descrip = new char[strlen(otherTree.descrip) + 1];
    strcpy(descrip, otherTree.descrip);
    }

Destructors

• A destructor is invoked automatically when a class object is destroyed.
  Objects are destroyed under many circumstances:
  • you delete the instance
  • you exit the scope for which the object was instanced
  • the program ends

• The name of the destructor function is the same as the name of the class but it is preceded with the tilde symbol ~. For example, if your class name was Grades then the destructor name would be ~Grades

• You cannot pass parameters to a destructor function.

• You do not indicate the data type of a destructor function because the function cannot return any value.

• Reasons for using destructors will be presented later in the course when dynamic allocation is discussed.
• you never call a destructor instead you use the delete keyword.

Lab Exercise -- ADTs Implemented with C++ Classes

Please get the zip and extract the files to your cs115 directory:

curl https://www.labs.cs.uregina.ca/115/CODE/4-Class.zip -O -s
unzip 4-Class.zip

Create a "Date" class that contains:

• three private data members:
  • month
  • day
  • year
    (I leave it to you to decide the type)

• "setters" and "getters" for each of the data (6 functions in total)
  • One advantage of a "setter" is that it can provide error checking. Add assert statements to the setter to enforce reasonable conditions. For example, day might be restricted to between 1 and 31 inclusive.

• one default constructor (no arguments)

• one constructor with three arguments: month, day, and year
  • Add assert statements to enforce reasonable conditions.

• a printDate function. This function will have no arguments and return void

• a sameDay function. This function will have one Date argument and a boolean return type


In main (in the following order):

1. instantiate one date object (date1) using the default constructor

2. use the getters to display the month, day, and year of date1 (should print the default values)

3. read keyboard input from the user for a month, day and year

4. use the setters to set the values of date1 to the values that came from the user

5. read keyboard input from the user for a second date

6. use the constructor with three arguments to instantiate date2 to the second date input from the user

7. print both objects using printDate

8. print a message to say if the two days are the same (testing the sameDay function)

Your code should be in three files:

• Date.h
  • contains the class definition

• Date.cpp
  • includes "Date.h"
  • contains the functions for the class

• main.cpp
  • includes "Date.h"
  • tests the class


Sample Output (Two Runs)

>./main
Testing the default constructor and the getters
The initialized date is (M-D-Y):1-1-1

Please enter a date:(Month Day Year): 11 03 1976
Please enter a second date:(Month Day Year): 03 03 1999

Printing the two days:
The date is (M-D-Y): 11-3-1976
The date is (M-D-Y): 3-3-1999
The days are the same
>./main
Testing the default constructor and the getters
The initialized date is (M-D-Y): 1-1-1

Please enter a date:(Month Day Year): 12 15 2009
Please enter a second date:(Month Day Year): 12 25 2020

Printing the two days:
The date is (M-D-Y): 12-15-2009
The date is (M-D-Y): 12-25-2020
The days are different

If you are having trouble compiling your class, check for these common errors:

1. You have forgotten the semi-colon(;) after the closing curly bracket (}) for the class definition (in the Date.h file)

2. You have forgotten the scope resolution as in: void Date::setYear(int y) (in the Date.cpp file)

3. You forgot the () after the function name. For example, you should write: cout << date1.getYear() (in main.cpp)

For the StudentClass that we go over this week, see StudentClass.cpp
