CS210 Lab: Stack and Exception Handling

Highlights of This Lab:

• Definition of Stack
• Application: Determining Well Formed Expressions with Parenthesis
• Handling Exceptions

Lab Exercise:

1. Definition of a Stack

In a Stack implementation, items are added to and removed from the top of the pile. Consider the pile of papers on your desk. Suppose you add papers only to the top of the pile or remove them only from the top of the pile. At any point, the only paper that is visible is the one on top. What you have is a Stack.

1.1 Applications of a Stack

• determining well-formed parenthesis. For example: ((a+b)*c)
• calculating using RPN (Reverse Polish Notation). For example:1 2 + 3 *
• keeping track of operation calls in programming language systems. For example: The main program calls operation A, which calls operation B, which calls operation C. When C finishes, control returns to B; when B finishes, control returns to A; and so on.
• analysing syntax for nested components (compiler use). For example, for loops can contain if-then
statements that contain while loops. As the compiler works through such nested constructs, it "saves" information about what it is currently working on in a stack. When it finishes its work on the innermost construct, the compiler can "retrieve" its previous status from the stack, and pick up where it left off.

1.2 Typical Operations of a Stack

2. Application: Determining Well-Formed Expressions with Parenthesis

A classic use of a stack is for determining whether a set of parenthesis is "well formed". What exactly do we mean by well formed? In the case of parenthesis pairs, for an expression to be well formed, a closing parenthesis symbol must match the last unmatched opening parenthesis symbol and all parenthesis symbols must be matched when the input is finished.

Consider the following table demonstrating Well-Formed Versus Ill-Formed Expressions:

Well-Formed Expressions	Ill-Formed Expressions
( x x x [ ] )	( x x x [ )
( ) [ ] { }	( (
{ ( x x x x x ) ( ) }	{ x x x x x ) ( ) }

• nested components (such as for loops, if-then statements, and while loops). The compiler checks for matching {} pairs to denote blocks of code. If the pairs do not match, a compiler error will occur.
• mathmatical expressions. For example a = b - {(x + y) * z + 3};
• array notation [ ].
• function calls and function definitions. Specifically, the parameters must be surrounded by balanced "(" ")".

2.1 The Algorithm

• If the character is an opening symbol (characters "(", "{", or "["), then push it onto the stack
• Else if the character is a closing symbol (characters ")", "}", or "]"), then:
• Check if the stack is empty. If it is, then there is no matching opening symbol. The expression is not well formed.
• Else,
• get the character at the top of the stack
• pop the stack
• compare the current closing symbol to the top symbol. If they balance each other, then the expression is still balanced and continue looping (reading the next character)
• If the end of the expression is reached, and it is still balanced, then print "expression is well formed"
• Otherwise, print "expression is not well formed"

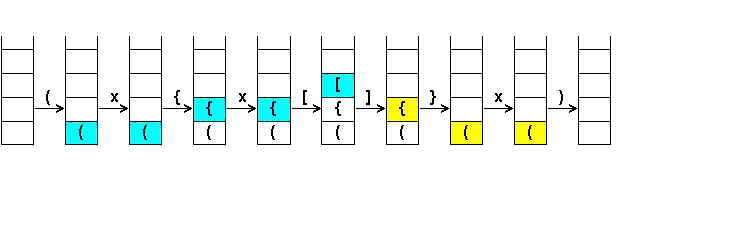

The expression:

(x{x[]}x)

yields the following computation




'('

: Push (




'x'

: Ignore




'{'

: Push {




'x'

: Ignore




'['

: Push [




']'



: Get top of stack, openSymbol='['

     Pop

     Compare if '[' matches ']'




'}'



: Get top of stack, openSymbol='{'

     Pop

     Compare if '{' matches '}'




'x'

: Ignore




')'



: Get top of stack, openSymbol='('

     Pop

     Compare if '(' matches ')'




'\n'

: Print expression is well-formed


3. Lab Exercise

Stacks and Exception Handling

• Get the files:

  Balanced.cpp,
  StackType.cpp,
  StackType.h
  ItemType.h


• There are four files used in this project:
  • Balanced.cpp -- the main program. You will modify the code in this file only.
  • StackType.cpp and StackType.h -- the array implementation of the stack is from the C++ Plus Data Structures textbook.
  • ItemType.h -- contains the definitions of MAX_ITEMS and ItemType.

  Your primary tasks for this exercise are:

  1. Fix the bug which occurs when there are open parenthesis but no corresponding closing parenthesis.
  2. Create exception handling so that no errors occur when the stack is full.

  Steps include:

• Build an executable file.

• Run the executable file, trying the test plan cases in the table below.

• You should find a couple incorrect results as you try the test plan cases. This is because there were problems with the algorithm. Correct these problems one at a time:

  1. Program does not recognize that opening parenthesis without matching closing paranthesis is NOT a well-formed expression.
     For example, test case # 5: ( x ( x [ ] x.
     To fix this problem, you will have to set balanced to false if the stack is not empty at the end of the expression.

  2. Program exits with "Debug Error" message box.
     For example, test case # 7: ( x ( ( ( ( ( (.
     To fix this, you will have to use exception handling to "catch" the "FullStack" exception.
     For more on exception handling and hints for fixing this problem click here.

• Once these problems are fixed, try the test plan cases once again and create some of your own.

Test Plan for the Balanced Parenthesis Evaluation Program

#	Parenthesis Expression	Expected Result	Checked
1	()
2	((
3	({[]})
4	([)]
5	(([]
6	()]
7	((((((((

When you are finished, your program should:

1. Print "Expression is well formed" message if there are matching braces in the right orders.
2. Print "Expression is not well formed" message if the braces don not match.
3. Print a "stack is full" and "Expression is not well formed" message using a try/catch statement (not using if/else).

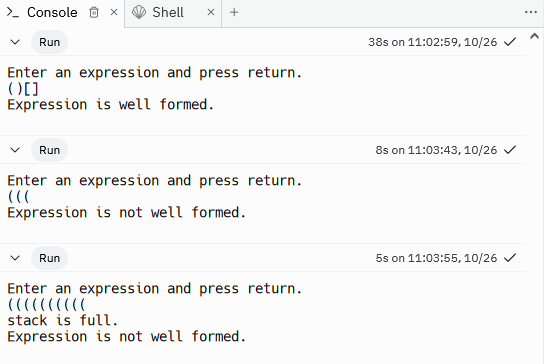

A sample output could look like this:
