Click the little computer above for a detailed description. For this excercise you will be asked to implement a password checking
system to authenticate a users password.
7
1. Definition of a Hash Table
Before we get into the definition of Hash Tables, it is good to introduce WHY to use Hash tables.
Hash tables are good for doing a quick search on things.
For instance if we have an array full of data (say 100 items).
If we knew the position that a specific item is stored in an array, then we
could quickly access it. For instance, we just happen to know that
the item we want it is at position 3;
I can apply:
myitem=myarray[3];
With this, we don't have to search through each element in the array,
we just access position 3.
The question is, how do we know that position 3 stores the data that we are
interested in?
This is where hashing comes in handy. Given some key, we can apply a hash
function to it to find an index or position that we want to access.
1.1 What is the hash function?
There are many different hash functions.
Some hash functions will take an integer key and turn it into an index.
A common one is the division method.
Let's learn through an example:
1.2 Division method (one hash method for integers)
Let's say you had the following numbers or keys that you wanted to map into an
array of 10 elements:
123456
123467
123450
To apply the division method, you could divide the number by 10
(or the maximum number of elements in the array)
and use the remainder (the modulo) as an index.
The following would result:
123456 % 10 = 6 (the remainder is 6 when dividing by 10)
123467 % 10 = 7 (the remainder is 7)
123450 % 10 = 0 (the remainder is 0)
These numbers would be inserted into the array at positions 6, 7, and 0 respectively. It might look something like this:
The important thing with the division method is that the
keys are integers.
1.3 What happens when the keys aren't integers?
You have to apply another hash function to turn them into integers.
Effectively, you get two hash functions in one:
function to get an integer
function to apply a hash method from above to get an index to an array
What do we mean that the keys aren't integers? Well, let's say that the keys
are people's names. Such as:
Sarah Jones
Tony Balognie
Tom Katz
The goal is to type in one of these names and get an index to an array in
order to access that information. How do we do this?
The hash function has to do two things:
Convert the names into integers
For instance, we have a function which turns a string into
an integer. The results will be as follows:
Sarah Jones --> 1038
Tony Balognie --> 1259
Tom Katz --> 746
Apply a hash method to get an index
We can now apply the division method to get an index for
an array of 10 elements
Sarah Jones --> 1038 % 10 --> 8
Tony Balognie --> 1259 % 10 --> 9
Tom Katz --> 746 % 10 --> 6
1.4 What would that look like in the array?
The array is known as a hash table. It stores the key (used to find the
index) along with associated values. In the above example, we might have a
hash table that looked something like this:
Again, the idea is that we will insert items into the hash table using the key
and applying the hash function(s) to get the index.
A problem occurs when two keys yield the same index. For Instance, say we
wanted to include:
John Smith --> 948 % 10 --> 8
We have a collision because Sarah Jones is already stored at
array index 8.
We need a method to resolve this.
The resolution comes in how you create your hash table.
There two major approaches given in the book:
Linear Probing
Chaining
The approach used in this lab is referred to as chaining.
The details are left as class material, but recognize that in
chaining you have an array of linked lists.
All the data in the "same link", have colliding index values.

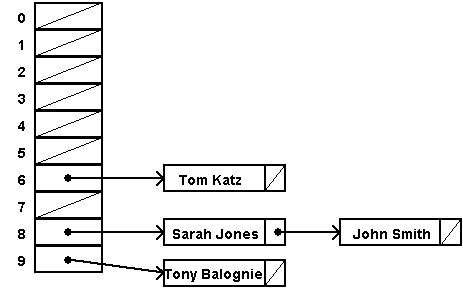

Consider a diagram of the above example.
Remember, there was a collision with Sarah Jones and John Smith.
Notice that John Smith is "chained" or "linked" after Sarah Jones.
1.5 Applications of a Hash Table
Hash tables are good in situations where you have enormous amounts
of data from which you would like to quickly search and retrieve information.
A few typical hash table implementations would be in the following situations:
For driver's license record's.
With a hash table, you could quickly
get information about the driver (ie. name, address, age)
given the licence number.
For compiler symbol tables. The compiler uses a symbol table to
keep track of the user-defined symbols in a C++ program.
This allows the compiler to quickly look up attributes
associated with symbols (for example, variable names)
For internet search engines. For more information, click
here
For telephone book databases.
You could make use of a hash table implementatation
to quickly look up John Smith's telephone number.
For electronic library catalogs. Hash Table implementations
allow for a fast find among
the millions of materials stored in the library.
For implementing passwords for systems with multiple users.
Hash Tables allow for a fast
retrieval of the password which corresponds to a given username.
1.6 Typical Operations of a Hash Table
The functions associated with our implementation of the hash table are
the following:
bool isEmpty()
Returns true if the hash table is
empty. Otherwise, returns false
bool isFull()
Returns true if the hash table is
full. Otherwise, returns false
void insert (const DT &newDataItem)
Inserts newDataItem into the
appropriate list in the hash table.
The location (index) in the hash table is determined
by the key and the hash function.
bool remove (KF searchkey)
Searches the hash table for the data item with
the key searchKey. If the data item is
found, then removes the data item and returns
true. Otherwise, returns false.
bool retrieve (KF searchkey, DT &dataItem)
Searches the hash table for the data item with
the key searchKey. If the data item is
found, then copies the data item to dataItem
and returns true. Otherwise, returns
false.
void clear()
Removes all data items in the hash table.
void showStructure()
Outputs the data items in a hash table.
If the hash table is empty, outputs, "Empty hash table".
This is meant for testing/debugging purposes.
2. Application: Looking up Passwords
The following section outlines an algorithm for authenticating a user's
password.
Later, in the lab exercise,
you will be given the skeleton code and asked to add lines to make it work.
One possible use for a hash table is to store computer user login usernames
and passwords.
There are two major steps to this program:
The program will load username/password sets from the file
password.dat and insert them into the hash table until the end
of file is reached on password.dat.
The password.dat file will look something like this with one username/password
set per line:
jack broken.crown
jill tumblin'down
mary contrary
bopeep sheep!lost
The program will then present a login prompt, read one username, present a
password prompt, and after looking up the username's password in the
hash table, will print either "Authentication successful" or
"Authentication failure". The output might look something like this:
Login: mary
Password: contrary
Authentication successful
Login: jim
Password: contrary
Authentication failure
Login: bopeep
Password: sheeplost
Authentication failure
Step 2 will be repeated until the end of the input data (EOF) is reached on
the console input stream (cin).
The EOF character on the PC's is the CTRL Z character.
Let's fill in some of the details:
To convert from a string to an integer,
we can add the ascii value of each character together.
For instance, mary's conversion from string to integer might look
something like this:
109('m') + 97('a') + 114('r') + 121('y')=441
The code will look like this:
int hash(const string str) const
{
int val = 0;
for (int i=0; i<str.length(); i++)
val += str[i];
return val;
}
We've converted the string to an integer, but we still need to convert the
integer to an index. For an array of 10 elements we can divide by 10 and use
the remainder as an index.
Combining these two hash functions, we will get some code that looks like this:
hashtbl.cpp and hashtble.h --
contain the implementation of the hashtable class
listlnk.cpp and listlnk.h --
contain the implementation of linked lists class
login.cpp -- the main program. This contains the
Password structure, which is inserted into
the hashtable.
password.dat -- contains all the users and
corresponding passwords.
Your primary tasks for this exercise are to edit the login.cpp to
add in lines so that it does the following:
insert passwords into the Hash Table
retrieve one user's Password structure from the Hash Table
check to see if the user is in the table and compare retrieved user password to input password, print
"Authentication failure" or "Authentication successful"
Steps include:
Try to run this program. You should find that it will prompt you for "Login:"
and "Password:" (type in random words at these prompts). You will notice
that it continuely cycles around asking you for this information.
To stop the program from running,
at the "Login:" prompt, type
CTRL and z (simultaneously) and then the Enter key .
Add in a line to insert passwords into the table. Hint: notice that the name
of the hashtable is passwords and that you want to insert
a Password structure called tempPass into the hashtable.
Add in a line to print out the hash table. Hint: the hashtable is
passwords and there is a member function called
showStructure.

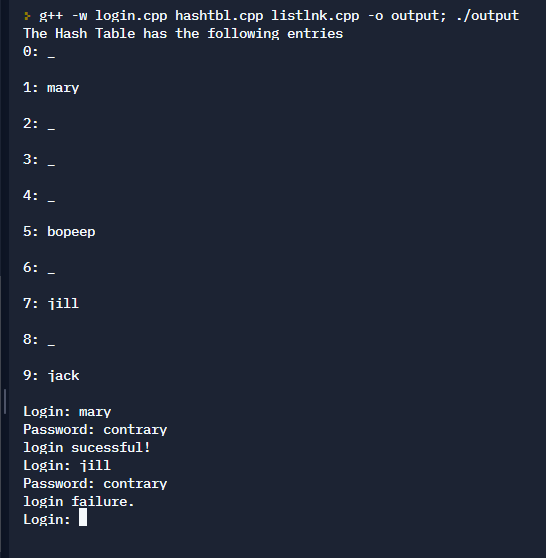

Build and Run this program. If all is working well, you should get some output that looks like this:
The Hash Table has the following entries
0: _
1: mary
2: _
3: _
4: _
5: bopeep
6: _
7: jill
8: _
9: jack
Login:
This shows the hash table that has resulted from inserting data from the
password.dat file (mentioned in Section 2). Notice that mary is
at index 1, just as we predicted (in Section 2).
Add lines to compare the true password to the input password and print
"Authentication failure" or "Authentication successful".
Hint: Compare the input password (pass) to the password
within the tempPass object (which has been retrieved).
Build and Run your program. You should get results like the following:
Login: mary
Password: contrary
Authentication successful
Login: jim
Password: contrary
Authentication failure
Login: bopeep
Password: sheeplost
Authentication failure
Test Plan for "Login" Simulation Program
Login:
Password:
Authentication Predicted
Result
mary
contrary
successful
jim
contrary
failure
bopeep
sheeplost
failure
bopeep
sheep!lost
successful
When you are finished, your program should:
Read the list of username and password combinations from the data file and insert them into the hash table
Print out all of the names in the hash table
Take a username and password input from the user
Check if the username is in the table, and if the password matches the passsword associated with that username
Print out a success message if everything matches, print out a failure message if anything does not match
